LEWA ecoflow®
The all-around talent for high pressure.
The ecoflow diaphragm process pump, known as the 'big sibling' of the ecoflow diaphragm metering pump, stands as the pinnacle of pump technology, catering to high discharge pressure requirements across diverse process applications.
Its adaptable modular system allows for the integration of various pump heads and drive units, offering flexibility in construction, whether in-line or boxer design.
With its patented sandwich diaphragm, diaphragm protection system, and durable drive units, the ecoflow ensures reliable operation even in extreme conditions. It is engineered to handle a wide range of media, including hazardous, combustible, toxic, abrasive, viscous, environmentally harmful, or sensitive fluids.
Benefits of LEWA ecoflow® for High-Pressure Process Pumping
The LEWA ecoflow stands out as a hydraulically actuated process diaphragm pump, renowned for its modular design and technological leadership in the global market.
Unique suction capability
The LEWA ecoflow diaphragm process pump differs from other pumps due to its unique suction capacity. With an absolute suction pressure of up to 0.1 bar, it provides more than just a wide array of safe installation options. The operating costs for the entire system can also be decreased compared to other pumps.
Modular system
The construction with its tried-and-tested modular system makes it possible to combine various pump heads and drive units in variable modular design with series or boxer design. This allows us to create a process pump that meets your specific needs. We take your performance needs and space requirements into account in the design.
Absolutely safe and reliable startup
Starting up the process pump is safe, reliable and easy: When not operating, a spring fixes the diaphragm in a neutral position at all times. This ensures that the diaphragm is never damaged due to incorrect positioning when starting up.
Low maintenance costs and a long service life
The ecoflow series features a long service life for all components and particularly low maintenance and operating costs. If regular maintenance intervals are maintained, our diaphragm pumps can operate for 40 years or more in your production process.
Safety and reliability in extreme operating states
For us, safety and reliability come first: The pump is not subjected to damage, even after operating errors occur or in extreme operating states. We offer maximum protection for user and machine through built-in safety mechanisms—not only when excess primary pressure is present, but also when the pressure or suction line is closed.
Suitable for virtually all fluids
The ecoflow series is suitable for almost all liquids thanks to its flexible design. Whether they are dangerous, toxic, abrasive, viscous, environmentally harmful or sensitive fluids, the user-specific configuration always gives you the correct diaphragm process pump.
Variable eccentric principle
The flow rate can be adapted using the tried-and-tested variable eccentric principle based on a linear relationship with the stroke length.
Patented sandwich diaphragm
Our patented sandwich diaphragm is not just extremely durable, it is also well-protected. The LEWA DPS diaphragm protection system and diaphragm monitoring system report any damage to the diaphragm before it tears and has a chance to contaminate the pumped fluid.
Integrated pressure relief valve
A pressure relief valve in the hydraulic part of the diaphragm pump prevents potential overload situations during operation. This valve is individually adjustable and can therefore be adapted to different operating situations.
API 675 standard
The ecoflow series fulfills the internationally valid quality standard of the American Petroleum Institute API 675. In this standard, all requirements for a displacement pump in industrial settings are defined with respect to design, construction and performance.
Rugged drive units
Our drive units are extremely rugged and durable. This makes the pumps ideal for use under the harshest conditions.
High energy efficiency
LEWA diaphragm pumps achieve the highest efficiency of all pump technologies. Our ecoflow series also combines high efficiency with low energy consumption.
Worldwide standards
When designing pumps, we adhere to globally valid standards such as VDMA 24284, 24286-10 and FDA guidelines.
Hermetically sealed
Diaphragm pumps work without dynamic seals. This forms a hermetically sealed working area. No emissions escape to the outside, and contamination of the fluid is impossible.
LEWA Smart Monitoring
With digital pumps for more efficiency, system availability and profitability of the entire production.
LEWA Smart Monitoring is a monitoring system consisting of sensors, a programmable logic controller (PLC), an industrial PC (IPC) and data analysis for new and existing pumps. The system determines characteristic values and key performance indicators. There is no intervention in process control or direct contact between the sensor system and the conveyed fluid.
With key performance indicator-based condition monitoring, you detect and monitor operating statuses proactively. You can also optimize the overall output and robustness of your pump and pipe systems. This will increase the efficiency of your entire production plant. You can access the data conveniently via your corporate network. Or you use the LEWA cloud with extended analysis and service offers.
Learn more about LEWA Smart Monitoring
Exploring High-Pressure Process Pumping with LEWA ecoflow®: Videos
LEWA Creating ecoflow
LEWA ecoflow – complete animation
LEWA ecoflow – snifting valve
LEWA ecoflow – pressure relief valve
LEWA ecoflow – pressure in pump head M910
LEWA ecoflow - multiplex drive element
LEWA ecoflow - mounting of diaphragm
LEWA ecoflow - diaphragm monitoring
LEWA ecoflow - M910 upset suction condition
Key features of the High-Pressure Process Pumps
Multiplex capability
Single drive units with vertically installed motor are space-saving. Alternatively, multiple drive units with identical or different output can be combined for pulsation reduction or recipe metering.
Customized valves
LEWA uses numerous special types of valves such as specially hardened valves for liquified gases or valves with minimal dead space for the food and pharmaceutical production.
Diverse connection geometries
Our pumps are equipped with all common connection geometries such as DIN standard, BASF's high-pressure standard, American ANSI, JIS, or your individual requirements. Customized configurations are possible.
Integration into process control systems
The signal acquisition of process control systems is achieved analogously or digitally. Flow rate is adjusted via electric or pneumatic stroke adjustment, alternatively by motor drive (FU).
Sanitary & hygienic Design
LEWA pumps and systems in sanitary & hygienic design are available for applications that require extremely high purity, such as food production and the pharmaceutical industry.
Heating and cooling jackets
With heating and cooling jackets, our pumps are suitable for almost any temperature and can convey fluids at low temperatures or extreme heat.
Pumps in boxer design
You can double the flow rate with the same gear size using a LEWA boxer design multiplex pump. In this process, a drive operates two pump heads located opposite each other.
CIP and SIP capability
Many LEWA pumps, systems and units can be cleaned (Cleaning in Place) and sterilized (Sterilization in Place). To carry this out, it is not necessary to disassemble the equipment.
Special design materials
If the process demands it, wetted parts such as pumps heads and valves will be made of special materials such as stainless steel 316/316L (1.4401/1.4404), Hastelloy or Duplex steel and PVC.
Maximizing Performance in High-Pressure Process Pumping
With a range of pump heads and gear units, the LEWA ecoflow diaphragm process pump offers versatile performance capabilities. Experience high-performance and energy-efficient pumping solutions tailored to your specific application needs.
Drive unit data
| Type | Hydraulic power[kW] |
|---|---|
| LDF | 3.5 |
| LDG | 6.0 |
| LDZ | 15 |
| LDH/LDHB | 20/35 |

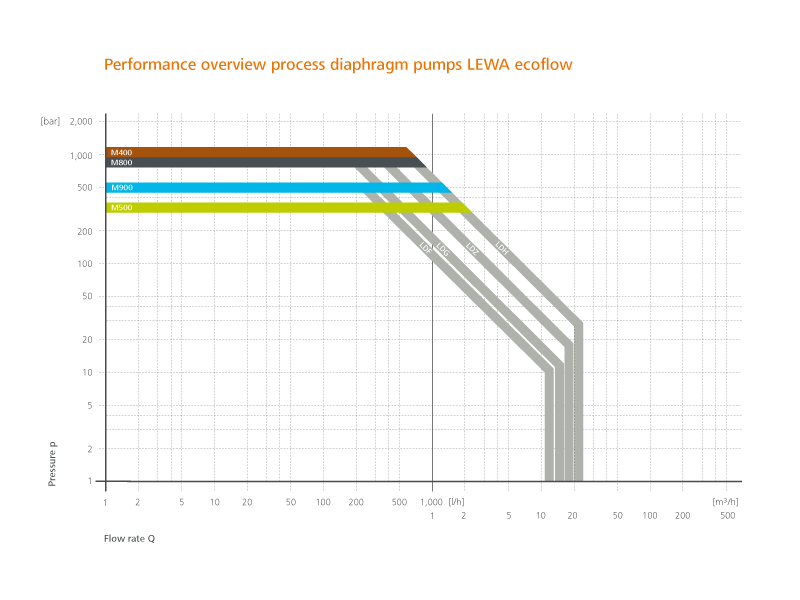

Performance overview
Installation dimensions
Save space and weight through multiplex arrangement of pumps or arrangement in the compact boxer design. Meter multiple liquids at the same time with various pump heads.
| Type | L [mm] | W [mm] | ΔW [mm] | H [mm] |
|---|---|---|---|---|
| LDF | 1130 | 900 | 430 | 940 |
| LDG | 1300 | 1300 | 490 | 1000 |
| LDZ | 1700 | 1700 | 700 | 1140 |
| LDH | 2100 | 1800 | 717 | 1500 |
Pump head variants
We provide various pump heads for different applications. Here, the spectrum ranges from all-purpose variants to special designs for high temperatures, pressures or aggressive fluids.
Pump head M900
State of the art universal diaphragm pump head with PTFE sandwich diaphragm for maximum operational safety. Robust and reliable with unmatched standard of protection against difficult start up, faulty operation and upset conditions. The patented DPS technology also enables a suction lift capability that is globally unique in the field of hydraulically actuated diaphragm pumps.
| Type | M900 |
| Pressure | 500 bar |
| Flow rate | 6 m³/h |
| Temperature | -20/+150 °C |
| Viscosity | 100.000 mPa∙s |
| Operational capability | Can be installed on all ecoflow diaphragm metering pumps |
Pump head M500
Universal diaphragm pump head with PTFE sandwich diaphragm for high flow rates. Proven, durable, reliable and with diaphragm position control.
| Type | M500 |
| Pressure | 350 bar |
| Flow rate | 19 m³/h |
| Temperature | -50/+150 °C |
| Viscosity | 100.000 mPa∙s |
| Operational capability | Metal pump heads (316/316L): can be installed on all ecoflow drive units ≥ LDE Plastic pump heads (PVC/PVDF/PTFE): can be installed on all ecoflow drive units ≤ LDE |
Pump head M800
Universal diaphragm pump head with PTFE sandwich diaphragm for extreme pressures. The special geometry of the diaphragm clamping system enables the use of PTFE diaphragms in pressure ranges up to 800 bar and thus results in a very compact shape. Very economical solution in the range of high pressures, especially in comparison to pump heads with metal diaphragms.
| Type | M800 |
| Pressure | 800 bar |
| Flow rate | 1,1 m³/h |
| Temperature | -10/+60 °C |
| Viscosity | 100.000 mPa∙s |
| Operational capability | Can be installed on all ecoflow process diaphragm pumps ≥ LDF. |
Pump head M400
Proven pump head with metal diaphragm for extreme pressures and high temperatures. Also suitable when a high degree of permeation resistance is required. The diaphragm is working between two contour plates, limiting the deflection of the diaphragm and providing an extreme level of operational reliability. The diaphragm monitoring system offers a plus for safety by immediately displaying the damage of a diaphragm layer.
| Type | M400 |
| Pressure | 1.200 bar |
| Flow rate | 0,8 m³/h |
| Temperature | -40/+200 °C |
| Viscosity | 500 mPa∙s |
| Operational capability | Can be installed on all ecoflow process diaphragm pumps ≥ LDF. |
Special pump heads in remote head design
Some tasks in process engineering include the metering or circulation of media with critical properties like high temperature and high abrasivity. These critical conditions frequently need to be kept away from the displacer system of the metering pump, either to protect the system or its operating personnel. A normal metering pump is not suitable for such tasks due to its compact design.
| Type | MR / MV / KV |
| Pressure | 500 bar |
| Flow rate | 19 m³/h |
| Temperature | -70/+400 °C |
| Viscosity | 100.000 mPa∙s |
| Operational capability | Remote pump heads can be installed on all LEWA ecoflow metering and process pumps and on all LEWA triplex metering and process pumps. |
